1.Machine model :A-130
2. Semi automatic cylinder tube making machine ,raw material is sheet .
3. 40-190 mm cylinder diameter , Max length of cylinder is 400 mm.
4. Suitable for PVC PET Cylinder tube making.
Machine Features
Machine model: A-130
400 mm length Semi-automatic Packing Box Cylinder Making Machine
2. Manual putting sheet upon the mold ,machine automatic gluing and sticking, and taking off the finished cylinder tube by hand.
3.Machine use Micro-computer PLC control system by tempearture and time setting.
4.Glue container use stainless steel ,ensure the gluing system working stable.
5.Other control component use famous brand like: SIMENS ,OMRON
Machine parameter
| Machine model number | A-130 |
| Voltage | 220v,Single Phase |
| power | 1.5KW |
| Suitable material | PVC PET plastic |
| Function | Cylinder side gluing |
| Cylinder diameter | 40-190 mm |
| Cylinder Max length | 400 MM |
| Material Thickness | 0.18-0.6 mm |
| Speed | 400-800 pieces/hour |
| Machine size | 1060*930*1650 mm |
Machine Working Process:
1. Prepare the suitable sheet ,it can be transparent or printed one .
2. Manual putting sheet on the machine mold .
3. Press start: machine folding ,and gluing by needle

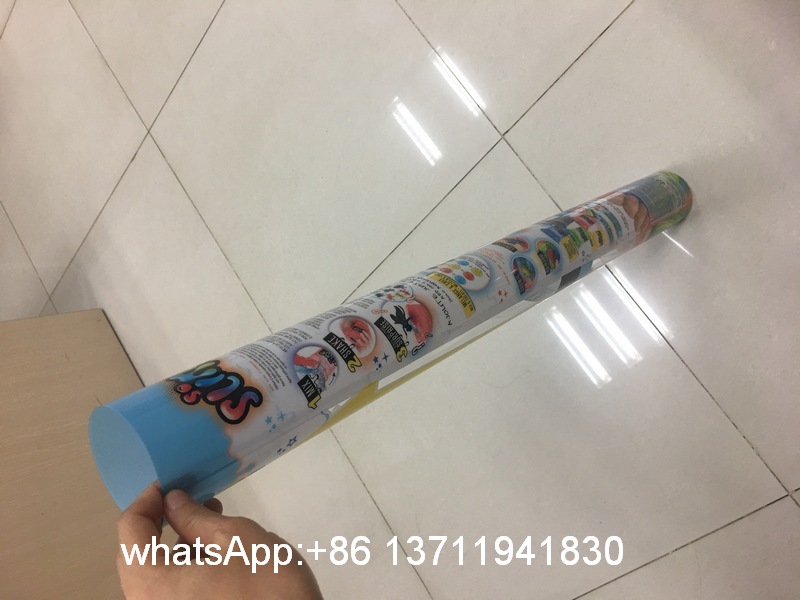

4.Manual taking out the finished cylinder tube.
5. machine with the gluing system ,PVC by PVC glue ,PET by PET glue.
6. Diameter:40-190 mm .Max length of cylinder 400 MM
