Model:A-8504 customed
1.Ensure machine can working stable,machine case use the steel material
2.PLC mirco-computer controls the machine,Digital parameter setting,automatic output.
3.Easy operate with high efficiency by import servo system and magnetic braking system.
4.Function: Putting PE protection film ,cutting into 2-3 pieces ,static dealing,corona treatment, flatten ,cutting in to sheet.

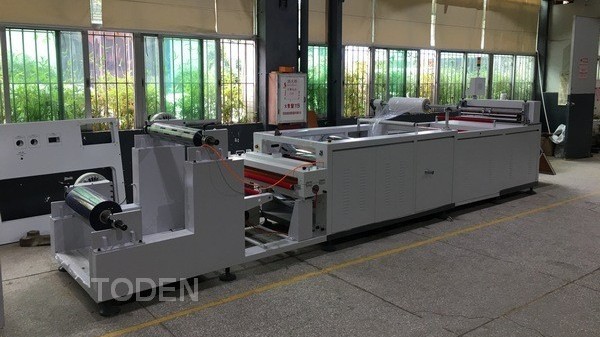

Machine Picture view:
Machine testing Vedio:
1. Machine suitable for PVC PET ,APET ,PETG rigid film.
2. Machine has flatten and cutting function.
3. Max width :800 mm. 4 oil cylinder heating for flatten
4. mainly customer is the material supplier.
| Machine Model | A-8504 |
| Voltage | 380V .3 Phases 5 line ,60HZ |
| Output Power | 8KW |
| Max raw roll material diameter | 500 mm |
| Max width of roll material | less than 800 mm |
| Material thickness | 0.18-1.0 mm |
| Precision | ≤ ±0.25 mm |
| Heating Cylinder | 4 cylinders |
| Air compressor needed | 0.6 MPA, 350l/mi |
| Machine speed | 25-30 m/minute |
| Machine size | 6700*1540*1350 mm(L*W*H) |
Plastic PVC boxes material sheet cutting machine Customed Point:
1. two airshaft loading roll,3' and 6' size of PVC PET roll plastic material.
2.Max weight:500kg ,Max diameter is 500 mm of roll material .
3. Putting PE masking
Machine working vedio:
this A-8504 Youtube link: https://youtu.be/prmWq8lZTyc
other related cutting machine and customer:
Saudia Arabie customer Buy sheet cutting machine testing Vedio: A-1004 with 500kg material holder
Machine Mainly parts and Brand
WEILUN touch screen Xinjie PLC
CHNT Leakage switch Panasonic Frequencor
Panasonic Temperature Moudel*2 PCS
JYC air cylinder Schneider Contactor
