Machine model : AP-12
1.PUR pasting PET boxes Machine
2.Small and manual machine for making PET boxes.
3.PUR glue,solid glue ,totally clear on the gluing area.

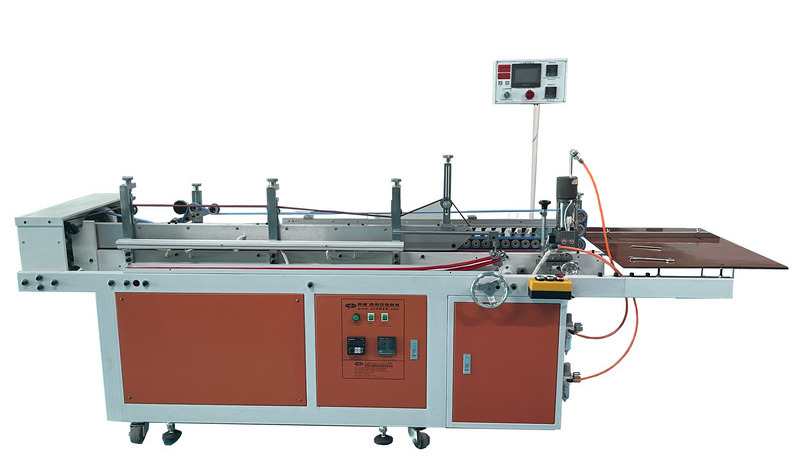

Semi automatic PUR glue Pasting PET boxes Machine AP-12
Machine Features
Machine application:
1. The machine is suitable for PET boxes .
2. Putting the folded boxes on the machine entrance ,machine automatic putting Sold glue ,PUR glue.
3.machine use PLC control the gluing length and speed.
| Machine Model | AP-12 |
| Voltage | 220V.1 Phases 50HZ |
| Output Power | 1.5 KW |
| Air Compressor needed | 0.6 MPA |
| Suitable Material | PET |
| folded boxes width | 50-380mm |
| Material thickness | 0.18- -0.5 mm |
| Machine Speed | 1000-3000 pieces/hour |
| Machine Size | 2420*900*1200 mm(L*W*H) |
Machine working veido:
Machine working details:
1.Prepare PET boxes ,which already die cut and crease boxes shape,transparent or Printed sheet ,all can using on the PET boxes gluing machine.
2. manual folding the PET boxes shape by two times.
3.adjusting the machine width of boxes entrance.
4. Open the PUR glue ,top and bottom,(Taking out the dryer),and making a hole on the top.
5.Putting the bottle type glue upon the machine, the glue container now is in very low temperature .and than cover it.
6.we have Chinese and English language on the PLC program .
7.Setting glue nozzle temperature and glue container body temperature.
8.Glued box sample
