Model:A8
1. Two worker operate the machine
2. Two tables wokring ,one by one.
3. one machine suitable for PVC sheet making soft line PVC boxes.
Semi automatic Plastic PVC boxes die cut machine
Model:A8
Machine Features
Sliding table PVC Boxes Sheet crease and die cut machine .small table sizes .700*500 mm .High Frequency doing the Soft Line crease on the Plastic PVC sheet ,die cutting .machine use the normall wooden die mold.easy operate the machine with lower cost . Machine working vedio:
Machine parameter
| Mahcine model | A8 |
| Voltage | 380V 3 Phases 60HZ |
| Output Power | 8 KW |
| Air Compressor needed | 0.6 MPA |
| Working Frequency | 27.12 MHZ |
| Suitable Material | PVC |
| Machine fucntion | PVC boxes soft line crease and die cut |
| Crease Board Size | 700*500 mm |
| Machine Speed | 400-500 pieces/hour |
| Machine size | 3030*1370*2250 mm (L*W*H) |
Machine Working Process:
1. Model A8 ,it is one sheet crease and die cut plastic boxes machine .the raw material will be one sheet ,manual putting sheet upon the machine board.High Frequency system working for PVC sheet. PVC sheet thickness from 0.18-0.6 mm ,table size is 700*500 mm
![IMG_4837[00_01_14][20200701-151525]](/resource/images/33f6f9d684454c6ba57c678595bbf441_2.png "IMG_4837[00_01_14][20200701-151525]")
2. manual puch the table upon the working head ,i mean the head which has the die cut mold .it already install the die cut mold.
![A-8KW[00_00_07][20200701-151001]](/resource/images/33f6f9d684454c6ba57c678595bbf441_4.png "A-8KW[00_00_07][20200701-151001]")
3. the sliding table goes right ,and there is a sonsor ,once arrived ,it will goes down , the die cutting mold working on the PVC sheet.
![A-8KW[00_00_08][20200701-151007]](/resource/images/33f6f9d684454c6ba57c678595bbf441_6.png "A-8KW[00_00_08][20200701-151007]")
4. High Frequency system need working on the PVC sheet ,it need 2-3 seconds.once finished ,the working head will goes on.the left table goes left ,and right table goes on working.two tables continues working.
![IMG_4837[00_00_09][20200701-151401]](/resource/images/33f6f9d684454c6ba57c678595bbf441_8.png "IMG_4837[00_00_09][20200701-151401]")

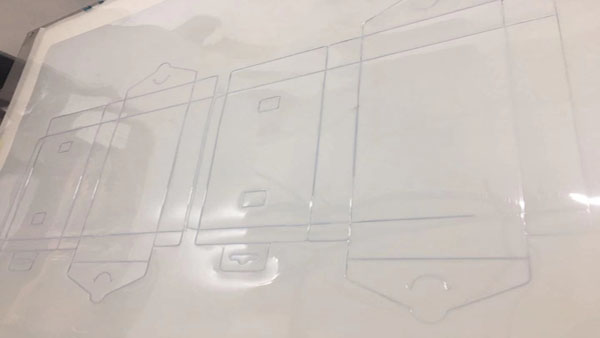

5. manually taking out the finished boxes ,PVC boxes crease by high frequency ,die cut the PVC boxes outside. Than boxes shape finished.
![A-8KW[00_00_30][20200701-151055]](/resource/images/33f6f9d684454c6ba57c678595bbf441_10.png "A-8KW[00_00_30][20200701-151055]")
![IMG_4837[00_00_26][20200701-151428]](/resource/images/33f6f9d684454c6ba57c678595bbf441_12.png "IMG_4837[00_00_26][20200701-151428]")
6. Other related machine: PVC boxes side pasting Machine
AP-8 semi-automatic boxes gluing machine
AP-2650 Fully automatic plastic boxes folding and gluing machine
7.Machine working vedio on youtube
youtube link: A8
